Washmax E40 PRIMA

WASHMAX GLASH WASHER

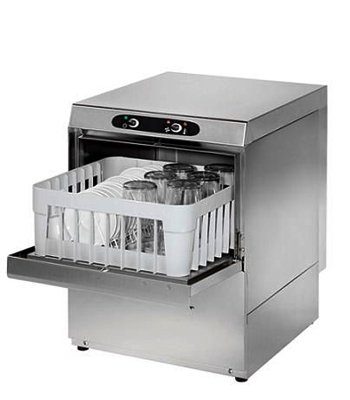

Perfect for use in high volume restaurants and bars, this Washmax E40 PRIMA high temperature energy recovery undercounter glass washer provides a powerful and efficient clean. As an energy recovery unit, this model reduces the amount of water vapour that escapes during and after the cycle. The heat recovery system promotes faster drying of glasses while reducing energy costs by using only a cold water supply.
The large 12 1/4" interior chamber clearance is designed to accommodate taller stemware, mugs, and glasses of any size. This versatile unit can effectively clean up to 20 racks or 600 glasses per hour. An efficient 1 hp wash motor uses only 0.73 gallons of water per cycle in order to conserve both water and energy. The soft start feature reduces noise and also minimizes the chance of glass breakage to prolong the life of your glassware!

Key Feature :
Model Washmax E40 PRIMA
Brand : Washmax
External Size(LxDxH): 18"x20"x27"
Overall Size: 33.60"
Clerance: 12 1/4"
Maximum heigth for crockery: 12"
Rack Size 16"x16"
Boiler Volume: 3.5ltr
Rinse water consumption: 2.4ltr
Wash Pump: 0.17kw
Tank Heater element: 1.60kw
Booster Heater element: 1.60kw

Total Load: 2.97kw Cycles: 120sec
Output cycles per hour: 30cyc/h Electrical Supply: 230V/50Hz Single Phase
Rated current: 48A Weight: 31kg

General Feature :
  • Single-skinned cabinet with double-skinned door.
  • Tank and door made of stainless steel AISI 302.
  • Monoblock wash pump fixed directly to the tank.
  • Easy-clean dual filter system.
  • Stainless-steel wash arm and two rinse arms of composite material, all independent and rotary.
  • Integral hydraulic rinse aid injector.
  • Electromechanical control panel.
  • Theoretical data with water supply at 55°C
  • Where water hardness exceeds 8, 42°e, a water softener is required.
  • Not suitable for hot water over 30°C.

  • Note: Specifications are subject to change without prior notice due to continuous product development and images. All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement. Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed
