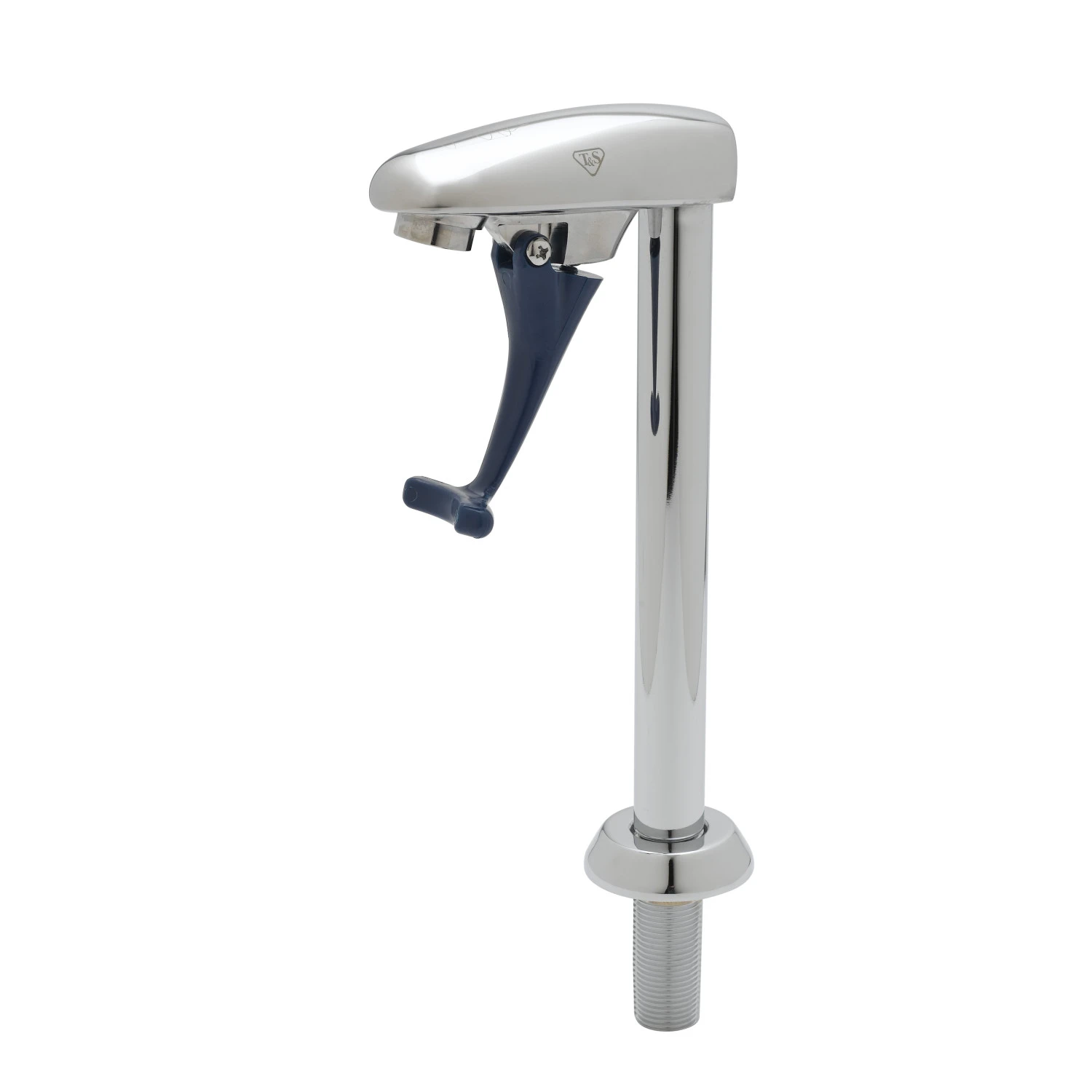

T&S BRASS GLASS FILLER WITH 8″ DECK MOUNT PEDESTAL AND 1/2″ NPT MALE SHANK B-1210
Model No: B-1210
A commercial water dispenser allows you to easily pour water at your bar, nightclub, and other beverage serving establishment. Each restaurant water dispenser features a simple push back arm, allowing you to easily control the flow of water, giving you the exact amount you need to fill pitchers, tumblers, or glasses. We also carry lead free compliant products that meet or exceed U.S. standards for lead content in potable water plumbing products. Save on your commercial water dispensers with our wholesale pricing!
Our selection of glass fillers attach to your existing countertop and flow outlets to quickly fill tumblers and glasses. A water station allows you to fill pitchers with ease so your service will not stop or slow down, and a drip pan will help eliminate costly and hazardous spills. To meet the needs of all your customers we also sell glass filling equipment that is ADA (Americans with Disabilities Act) compliant. Look for models made of sturdy stainless steel and lead-free components for some of the safest water dispensing equipment on the market!
KEY FEATURES
| Model: | B-1210 |
| Body-Mount: | Deck Mount |
| Height: | 8" high |
| Pressure Max: | Pressure Max: 125 psi (8.62 bar) |
| Pressure Min: | Pressure Min: 20 psi (1.38 bar) |
| Style： | Glass Filler |
| Temperature Max: | Temperature Max: 140 F (60℃) |
| Temperature Min: | Temperature Min: 40 F (4.44℃) |
| Style: | Push Back |
| Water Inlet Size | 1/2 Inches |
| Nozzle Clearance | 10 Inches |
| Weight: | 10.90 lbs (4.94 kg) |
| Box Dimensions: | 12x28x4 |
| Application : | Commercial Kitchen, Restaurants, Pub & Bar, Canteen, Food Courts, Cafeteria etc.. |
The T&S B-1210-01 deck mount push back glass filler features a 10" pedestal that offers plenty of space between the flow outlet and your countertop to quickly fill large tumblers and glasses! It has a blue push back arm that requires just a gentle touch to dispense water, while the flow outlet can be easily adjusted to accommodate your needs. This glass filler boasts instantaneous shut off to stop water flow when your glass is removed from the arm, making it perfect for high volume business. It has a 1 1/8" long male shank with a 1/2" NPT male inlet.
Features & Benefits
- 1/2" NPT male inlet
- 8" high deck mount glass filler
- Dark blue push back arm
- Instantaneous shut-off
- In-line check valves/li>
- Material: polished chrome plated brass body & pedestal, chrome plated metal flange and thermoplastic arm
- Pedestal w/ adjustable 2" flange
- Torx wrench adjustable flow outlet (wrench included)
DOWNLOAD
| INSTALLATION INSTRUCTIONS GUIDE | SUBMITTAL DRAWING | SUBMITTAL DRAWING |
Through easy water conservation efforts, you can save money in total operating costs, resulting in more money to invest in your business. From ceramic cartridges to aerators and spray valves, T&S offers a range of products engineered to help conserve water, save money, and promote overall efficiency.
Note: Specifications are subject to change without prior notice due to continuous product development and images. All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
