WINTERHALTER RACK CONVEYOR DISHWASHER

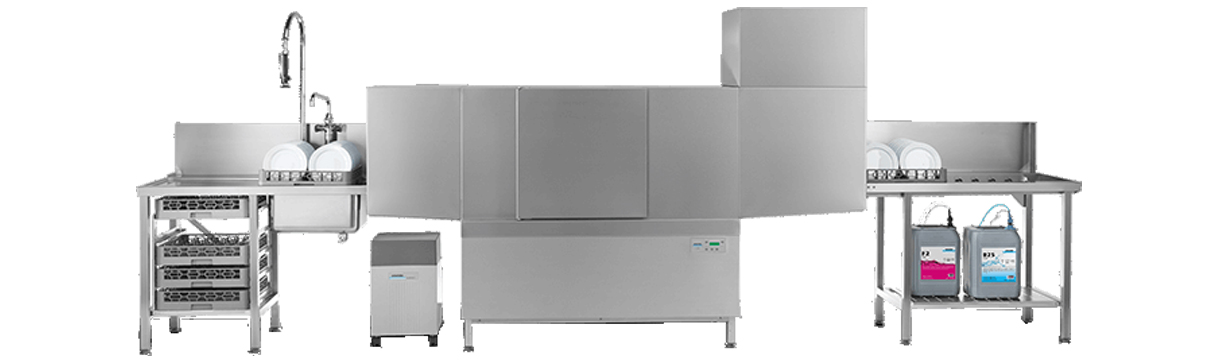

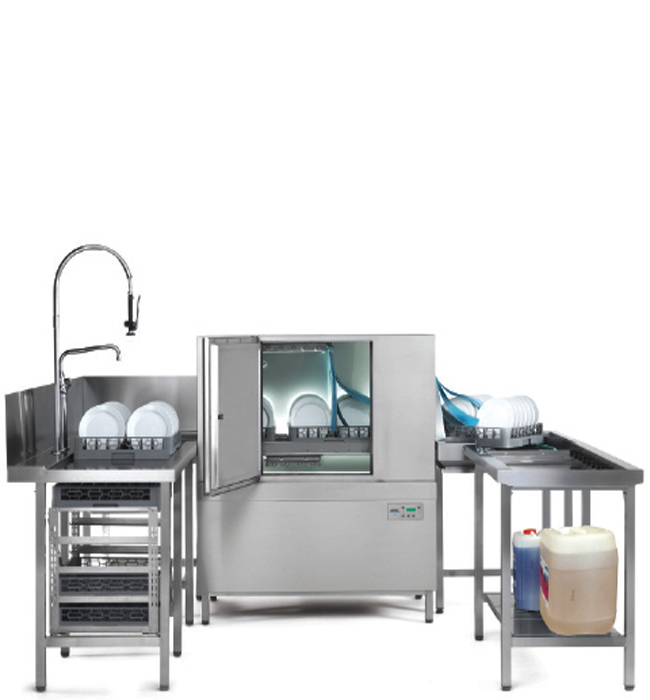

Winterhalter Rack Conveyor Dishwasher C50

PROFESSIONAL DISHWASHING. RELIABLE AND POWERFUL High performance – German technology are the two specifications for the development of the P50. The result is a rack passthrough dishwasher specially designed for the requirements of our customers in Asia: good wash results, extremely powerful, easy to use, very reliable, low operating costs. And all at an attractive price. Rack Conveyor DishwasherKeeping your dishes and glasses clean is essential to the life of your business, and thanks to this durable unit, you can successfully clean up to 55 racks per hour using Rack Conveyor Dishwasher.

Restaurants, hotels, refectories and canteens. Those working here know: Sometimes, it has to go really fast. Also in the kitchen. Stacks of plates, cups, glasses and cutlery must be hygienically cleaned in no time at all. This is precisely why Winterhalter has developed the C50 rack conveyor dishwasher: The warewashing system was developed for maximum performance and is designed for maximum speeds. With compact dimensions and modules that can be combined individually. For first-class wash results while requiring little space.

Key Feature :

Model	C50 Dishwasher
Brand :	Winterhalter
Dimensions(WxDxH)mm:	720 x 712 x 1020 mm
Depth - Door Open:	982mm
Rack Dimensions:	500 x 500 mm
Clear Entry Height:	450 mm
Water Connection:	G ¾”
Waste Water Connection:	32 mm
Tank Capacity:	95 Litre
Rinse Water Consumption :	360 l/h Litre
Tank Temperature Standard / High Temp:	62°C / 66°C
Rinse Tank Temperature:	85°C
Max Water Inlet Temperature	60°C

Circulating Pump (P1)	0.5 kW	Noise Emission	59 dB(A) Max
Weight (inc packaging)	335kg	Operating voltage:	220-240V / 1N~ / 50Hz
Total Connected Load: Cold water connection >̳30°C Hot water connection >̳50°	36.1kW 30.1kW	Current Type	400V 50Hz
Dimensions: Lenght Depth (without door handle) Height (with closed door) Height (with open door) Working height	1300mm 790mm 1556mm 1955mm 900mm	Performance of motor	1.7kW

General Feature :

WASHING SPEED: The major strength of the C50 is in its performance: With it you can achieve up to 260 racks per hour. And all this with compact dimensions and low space requirements. Three different speed levels allow you to adjust the wash cycle to suit the volume of wash items. With this, you are ready for anything. Even at peak times.

MAXIMUM FLEXIBILITY:With the C50 you have – and will continue to have – full flexibility: The machine is available in 2 basic versions, “single rinse” and “dual rinse”. The modular system also offers different configuration and installation options. Pre-cleaning zone or drying zone? Possibility for HighTemp mode? Mechanical or electrical corner conveyor? Linear or corner inlet table? It is all possible – and can of course be upgraded later.

HYGIENE SAFETY: The C50 is specifically designed for first-class wash results, hygienic cleanliness and excellent drying: With a standard tank heating performance of 18 kW, upgradeable tank heating performance to 27 kW (HighTemp) and a well-thought-out hygienic design. The boiler heating always operates, independently of the water pressure provided on site, with a stable 27 kW: This guarantees consistent and perfect rinse results.

USER-FRIENDLY: The C50 is simple: simple to install, simple to operate, and simple to clean. The display is self-explanatory and language-neutral. Automatic programmes help you during the cleaning and ensure fast emptying and filling of the machine. That makes your C50 ready for use in no time at all.

HIGHTEMP: Washing with high temperatures: For special applications, an optional HighTemp kit is available to retrofit the C50. This raises the tank heating power from 18 to 27 kW, and the tank water temperature rises to 73° C. For maximum hygiene and flexibility of use.

SOFT START: When the wash cycle starts, the P50 gradually and continuously build up the washing pressure. The gentle treatment ensure that even delicate dishes are properly protected.

FAST DRAINAGE AND FILLING: Sometimes things have to happen fast: As well as the normal drainage programme, the C50 has a special programme for fast drainage. This means that the entire tank water is drained in around five minutes – without flushing out the machine room. Another additional programme ensures that, if the tank water needs changing, the machine is ready to use again very soon afterwards. The tank is completely drained and filled again within 15 minutes.

DOUBLE FILTRATION: :The cleaner the wash water, the fewer changes of water are required. And the better the wash result. That’s why the C50 comes with an efficient double filtration system: Strainers filter food remnants from the wash water and can easily be removed for cleaning. The pump inlet filter protects against contamination right from the start and protects the pump from mechanical damage.

PUMP RINSE: For a perfect rinse result: In the “dual rinse” version, the C50 has a pump rinse. This means: The water comes out of a separate tank for rinsing and therefore has better water quality. Remnant particles are rinsed off even better.

NON-PRESSURIZED BOILER: From a water pressure of 1.5 bar the C50 boiler works independently of the water pressure and maintains a stable power of 27 kW. This guarantees consistently high rinse quality: with economic water consumption and rinse-aid dosing that is always optimal.

ZONE ACTIVATION: Intelligent and cost-saving: The individual zones of the C50 are activated only when actually required, i.e. when a washing basket is in the relevant zone. This conserves resources and lowers the operating costs. Because water, power, detergent and rinse aid are used efficiently and economically.

EFFICIENT TANK HEATING: Maximum safety in cleaning and hygiene: The standard C50 equipment includes tank heating with a high power of 18 kW. This ensures that the required tank temperature is reliably maintained at all times. You have the option of increasing the power with a HighTemp kit.

Note: Specifications are subject to change without prior notice due to continuous product development and images. All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement. Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed

---
