T&S Brass 5PR-2S12 Pre-Rinse

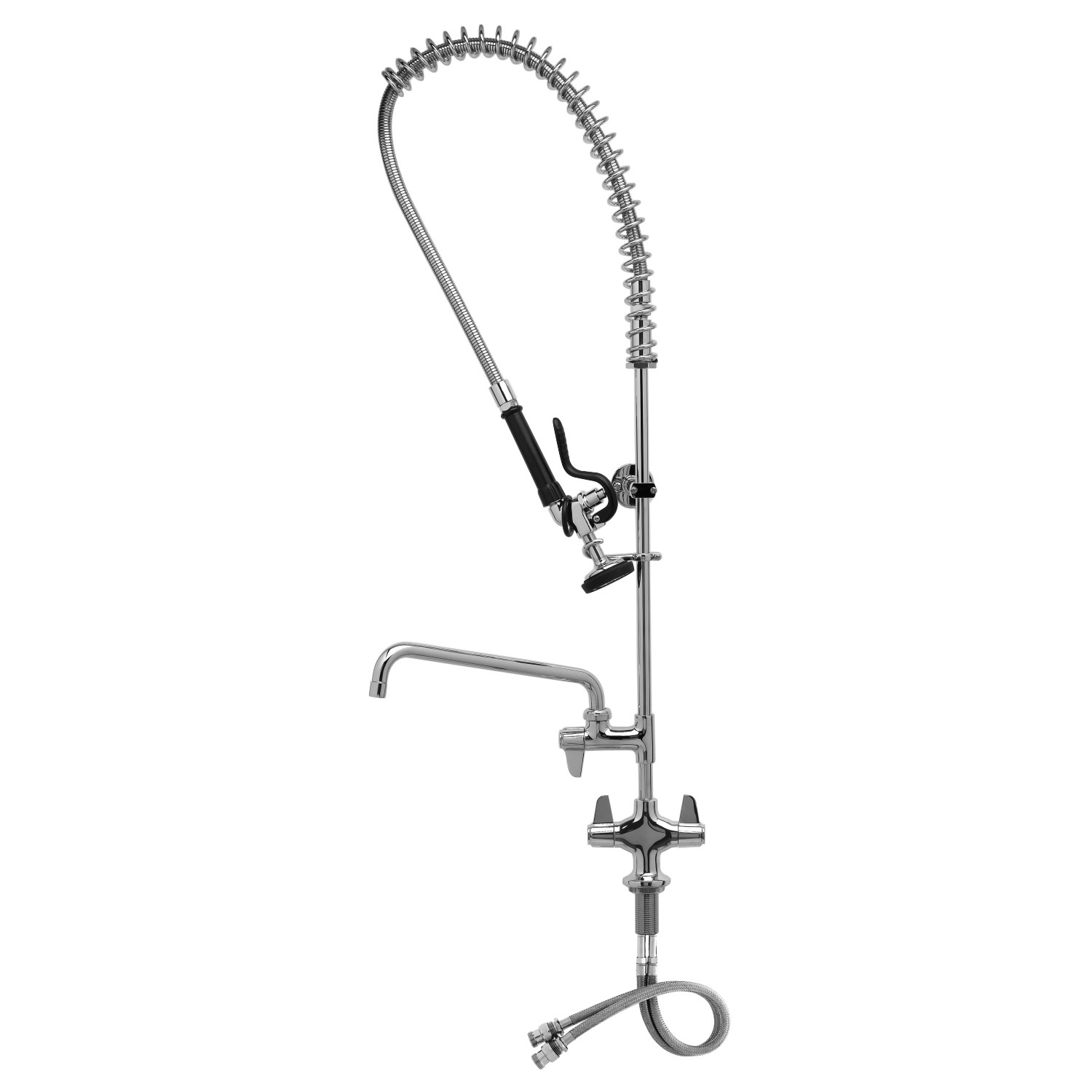

T&S Brass 5PR-2S12 Pre-Rinse Single Hole Base with 18-Inch Flexible Inlets, 6-Inch Wall Bracket and 12-Inch Add-On Faucet
The T&S Brass 5PR-2S12 is a robust and high-performance pre-rinse faucet assembly, designed for commercial kitchen use. This model features a single-hole deck mount, a 12-inch swing faucet spout, and a heavy-duty pre-rinse spray valve, making it ideal for rinsing dishes and cookware before dishwashing. Made from lead-free, chrome-plated brass, it offers durability, functionality, and easy compliance with foodservice regulations. Trusted by professionals worldwide, this T&S Brass unit is engineered for long-lasting use in busy kitchens.
Equip by T&S 5PR-2S12 Deck Mounted 34 1/4" High Pre-Rinse Faucet with Flex Inlets, 44" Hose, and 6" Wall Bracket and 12-Inch Add-On Faucet
Single hole deck mount mixing faucet with polished chrome plated brass body, 18" riser, 44" flexible stainless steel hose with heat resistant handle, 1.15 GPM spray valve, ceramic cartridges, 1/2" BSPP in-line check valves, lever handles, 18" flexible stainless steel supply hoses with 1/2" NPSM / 5/8" compression connections, spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61- Section 9 and NSF 372. 2019 DOE PRSV - Class II compliant.
Key Feature :
| Model: | 5PR-2S00 |
| Pressure: | 20 - 125 psi (1.38 bar - 8.62 bar) |
| Temperature: | 40 F - 140 F (4.44℃ - 60℃) |
| Body-Mount: | Deck Mount |
| Body: | Single Hole |
| Cartridge-Spindle: | Ceramic |
| Spray Valve: | EQUIP 5SV (1.15 GPM) (4.35 L/min) |
| Handle: | Lever |
| Maximum Water Temperature | 140 Degrees F |
| Pre Rinse Unit Type | Hose and Spring |
| Spray Valve: | EQUIP 5SV (1.15 GPM) (4.35 L/min) | Hose Length: | 44 Inches | Add-On Faucet: | No |
| Feature: | Check Valve 6" Wall Bracket (152 mm) |
| Weight: | 10.60 lbs (4.81 kg) |
| Box Dimensions: | 12x28x4 |
| Application : | Commercial Kitchen, Restaurants, Pub & Bar, Canteen, Food Courts, Cafeteria etc.. |
Having the right pre-rinse setup for your business can improve efficiency in your kitchen and dish room, and make life easier for you and your staff! This model is well-suited for most pre-rinse setups in a restaurant dishroom or warewashing area. It mounts easily to the wall and comes with a host of features to make installation and use as easy as possible, whether you need to replace an old faucet or you're using it on a brand new installation.
Equip by T&S 5SV Pre-Rinse Spray Valve
The Equip by T&S 5SV Equip Low Flow spray valve is a replacement for the Low Flow spray valve that comes with select Equip by T&S pre-rinse units, and and an upgrade over standard spray valves that come with the rest. This spray valve provides an efficient 1.15 GPM spray valve and has a black rubber bumper around its spray face to prevent damage to dinnerware.
The spray valve on this pre-rinse is capable of a 1.15 GPM flow rate. This helps you to conserve water and save money on your utility bill, and also makes it well-suited for most warewashing setups. An ergonomic and heat-resistant handle makes it easy to use even during a long and busy shift, while the hold-down ring lets you lock it in a continuous spray position for as long as you need
Features & Benefits
- Single hole deck mount mixing faucet w/ polished chrome plated brass body
- 44" flexible stainless steel hose w/ heat resistant black handle and hold down ring
- 1.15 GPM spray valve (5SV) with ergonomic squeeze handle
- Ceramic cartridges
- 1/2" BSPP in-line check valves
- Lever handles w/ color coded indexes
- 18" flexible stainless steel supply hoses w/ 1/2" NPSM / 5/8" compression connections
- Lever handles with color coded screws for durability and easy operation
- Ceramic cartridges provide excellent durability and leak-resistance since there is no seat washer
- Includes wall bracket for added support, and in-line check valves
- Lever handles with color coded screws for durability and easy operation
- Ceramic cartridges provide excellent durability and leak-resistance since there is no seat washer
- Includes wall bracket for added support, and in-line check valves
- Durable chrome plated brass construction
DOWNLOAD
| INSTALLATION INSTRUCTIONS GUIDE | SPEC DRAWINGS/PARTS EXPLOSION | SUBMITTAL |
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Note: Specifications are subject to change without prior notice due to continuous product development and images. All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
