5PR-8W00

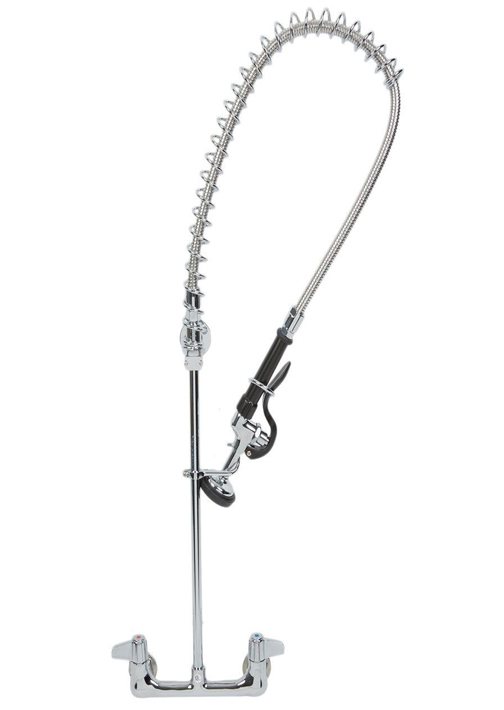

Equip by T&S 5PR-8W00-C Wall Mounted 31 1/2" High Pre-Rinse Faucet with 8" Adjustable Centers, Low Flow Spray Valve, 44" Hose, and 6" Wall Bracket

Wall-mounted pre-rinse 5P8R-W00 faucet with sprayer and add on faucet is perfect for rinsing excess food and sauces off of your dishes prior to running them through your commercial dish machine. Intended for janitorial and dishwashing use, this faucet is ideal for dish rooms, schools, grocery stores, kitchens, and more. Installed on 8" adjustable centers, it is completely interchangeable with other brands.

When you need a reliable pre-rinse faucet, look no further than the 5PR-8W00 from Equip by T&S.

8" wall mount mixing faucet with polished chrome plated brass body, 18" riser, 44" flexible stainless steel hose with heat resistant handle, 1.15 GPM spray valve, in-line check valve, ceramic cartridges, lever handles, 1/2" NPT female inlets, 6" adjustable wall bracket, spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. 2019 DOE PRSV - Class II compliant.

5pr-8w00

KEY FEATURES

Model: 5PR-8W00
Body-Mount: Wall Mount
Body:  8" Centers (203 mm)
Inlet:
  • 1/2" NPT Female (13 mm),
  • Adjustable Centers
  • Cartridge-Spindle: Ceramic
    Nozzle: Lever
    Handle:
  • Not Available with this model
  • Hose Length:
  • 44 Inches
  • Add-On Faucet
  • None
  • Maximum Water Temperature
  • 140 Degrees F

  • Spray Valve: : EQUIP 5SV (1.15 GPM) (4.35 L/min)
    Feature: Check Valve
    6" Wall Bracket (152 mm)
    Weight: 10.90 lbs (4.94 kg)
    Box Dimensions: 12x28x4
    Application : Commercial Kitchen, Restaurants, Pub & Bar, Canteen, Food Courts, Cafeteria etc..

    Having the right pre-rinse 5P8R-W00 setup for your business can improve efficiency in your kitchen and dish room, and make life easier for you and your staff! This model is well-suited for most pre-rinse setups in a restaurant dishroom or warewashing area. It mounts easily to the wall and comes with a host of features to make installation and use as easy as possible, whether you need to replace an old faucet or you're using it on a brand new installation.


    5pr-8w00 pre rinse spray valve

    1.2 GPM Spray Valve

    The spray valve (Model No. 5SV) on this pre-rinse is capable of a 1.2 GPM flow rate. This helps you to conserve water and save money on your utility bill, and also makes it well-suited for most warewashing setups. An ergonomic and heat-resistant handle makes it easy to use even during a long and busy shift, while the hold-down ring lets you lock it in a continuous spray position for as long as you need


    Features & Benefits

    • 8" wall mount polished chrome plated brass body.
    • 18" rigid riser
    • 44" flexible stainless steel hose w/ heat resistant black handle and hold down ring
    • 1.15 GPM spray valve
    • In-line check valves/li>
    • Quarter-turn ceramic cartridges
    • Lever handles w/ color coded screws
    • 1/2" NPT female eccentric inlets with 2" flanges
    • In-line check valves
    • Adjustable centers 7 3/4" to 8 1/4"
    • 6" adjustable wall bracket
    • Lever handles with color coded screws for durability and easy operation
    • Ceramic cartridges provide excellent durability and leak-resistance since there is no seat washer
    • Includes wall bracket for added support, and in-line check valves
    • Durable chrome plated brass construction

    DOWNLOAD

    INSTALLATION INSTRUCTIONS
    GUIDE
    SUBMITTAL DRAWING SUBMITTAL DRAWING

    Note: Specifications are subject to change without prior notice due to continuous product development and images. All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
