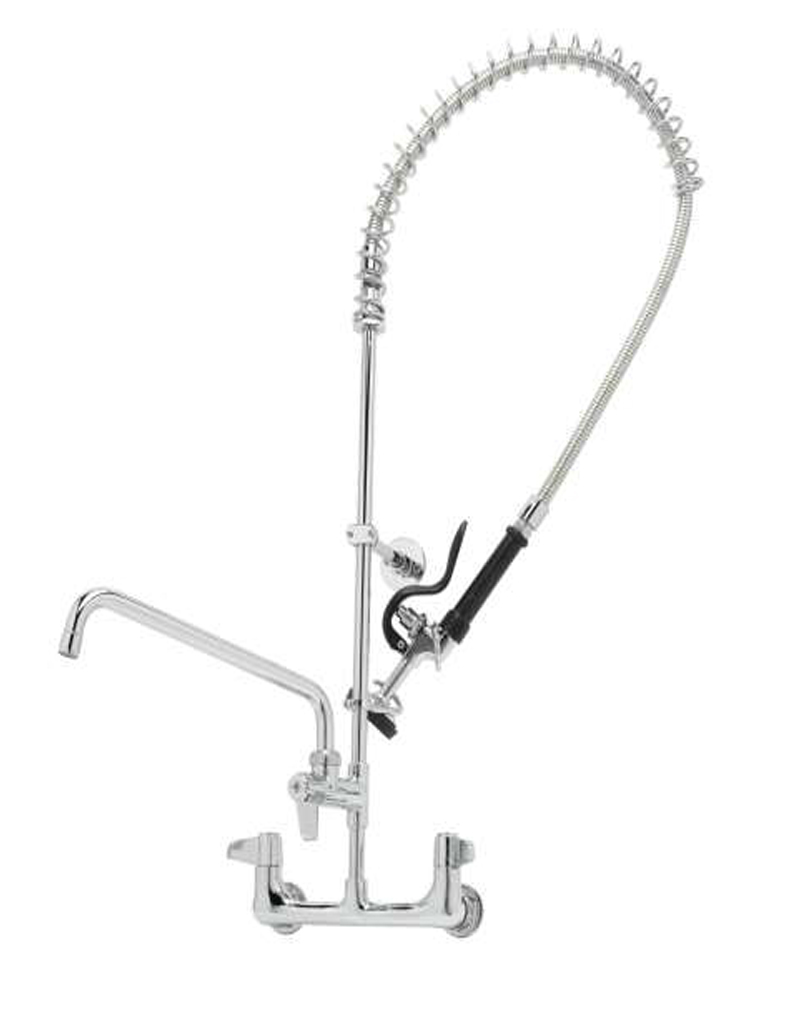

5PR-8W12

Pre-Rinse, Wall Mount Base, 8" Centers, 6" Wall Bracket, 12" Add-On Faucet

Wall-mounted pre-rinse faucet with sprayer and add on faucet is perfect for rinsing excess food and sauces off of your dishes prior to running them through your commercial dish machine. Intended for janitorial and dishwashing use, this faucet is ideal for dish rooms, schools, grocery stores, kitchens, and more. Installed on 8" adjustable centers, it is completely interchangeable with other brands.

When you need a reliable pre-rinse faucet, look no further than the 5PR-8W12-C from Equip by T&S.

8" wall mount mixing faucet with polished chrome plated brass body, add-on faucet with ceramic cartridge and lever handle, 12" swing nozzle with laminar flow device, 18" riser, 44" flexible stainless steel hose with heat resistant handle, 1.15 GPM spray valve, ceramic cartridges, lever handles, in-line check valves, 1/2" NPT female inlets, 6" adjustable wall bracket, spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. 2019 DOE PRSV - Class II compliant.

Key Feature :

Model:	5PR-8W12
Body-Mount:	Wall Mount
Body:	8" Centers (203 mm)
Inlet:	1/2" NPT Female (13 mm), Adjustable Centers
Cartridge-Spindle：	Ceramic
Nozzle:	Lever
Handle:	Add-On Nozzle Swivel 12" (305 mm) Nozzle
Nozzle Outlet Type:	Laminar Flow Device
Spray Valve: :	EQUIP 5SV (1.15 GPM) (4.35 L/min)
Feature:	Check Valve 6" Wall Bracket (152 mm)
Weight:	14.00 lbs (6.35 kg)
Box Dimensions:	12x28x4
Application :	Commercial Kitchen, Restaurants, Pub & Bar, Canteen, Food Courts, Cafeteria etc..

Having the right pre-rinse setup for your business can improve efficiency in your kitchen and dish room, and make life easier for you and your staff! This model is well-suited for most pre-rinse setups in a restaurant dishroom or warewashing area. It mounts easily to the wall and comes with a host of features to make installation and use as easy as possible, whether you need to replace an old faucet or you're using it on a brand new installation.

1.2 GPM Spray Valve

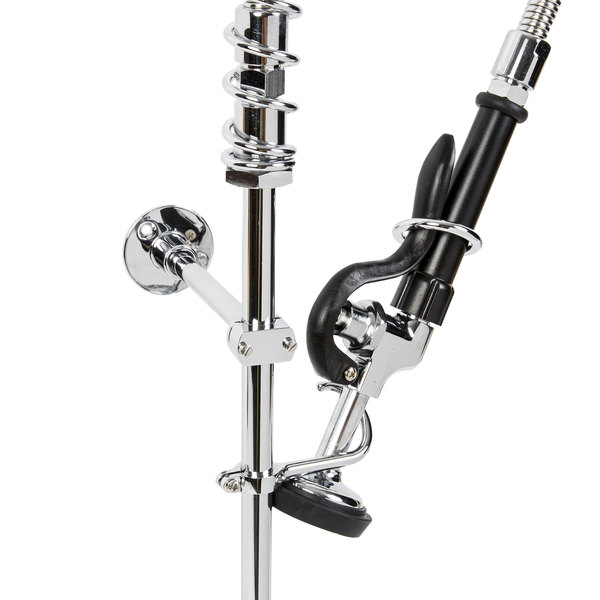

The spray valve on this pre-rinse is capable of a 1.2 GPM flow rate. This helps you to conserve water and save money on your utility bill, and also makes it well-suited for most warewashing setups. An ergonomic and heat-resistant handle makes it easy to use even during a long and busy shift, while the hold-down ring lets you lock it in a continuous spray position for as long as you need

Features & Benefits

8" wall mount mixing faucet w/ polished chrome plated brass body.
Add-on faucet w/ polished chrome plated brass body
12" swing nozzle w/ laminar flow device
18" rigid riser
44" flexible stainless steel hose w/ heat resistant black handle and hold down ring
1.15 GPM spray valve
Quarter-turn ceramic cartridges
Lever handles w/ color coded screws
In-line check valves
1/2" female inlets with 2" wall flanges
6" adjustable wall bracket

Key Features of 5PR-8W12:

High-Pressure Spray: The 5PR-8W12 faucet is engineered to provide a strong water stream, ensuring efficient pre-washing by quickly removing food scraps and grease from plates, pots, and pans.

Durable Construction: Built with high-quality stainless steel or brass, this faucet is designed to withstand heavy use in commercial kitchens while maintaining long-lasting performance and resistance to corrosion.

Flexible Hose and Swivel: Equipped with a flexible hose and 360° swivel action, the faucet allows for easy maneuverability, ensuring all angles of the dishes are covered during pre-washing. The flexible hose makes it easier to reach larger pots and trays.

Water-Saving Design: The 5PR-8W12 is designed to minimize water wastage without compromising on pressure. This ensures that you save on water costs while maintaining effective cleaning power.

Ergonomic Handle: The faucet's easy-grip handle is comfortable to use during long hours in the kitchen, ensuring smooth operation with minimal hand strain.

Quick Shut-Off Valve: A quick shut-off valve allows for water control at your fingertips, making it easy to switch the spray on and off between washing tasks, further contributing to water conservation.

Commercial Grade Performance: Ideal for busy kitchens, this faucet is built to meet the demands of high-traffic environments, making pre-washing more efficient and reducing time spent on manual dish cleaning.

Benefits of Using 5PR-8W12 Pre-Rinse Spray Faucets:

Time-Saving Efficiency: Quickly rinse plates and cookware, speeding up the dishwashing process in busy kitchens.

Cleaner Dishes: Removes stubborn food particles, ensuring plates enter the dishwasher pre-cleaned for more thorough washing.

Cost-Effective: Water-saving features help reduce utility bills without sacrificing cleaning power.

Easy to Maintain: The durable materials and simple design make this faucet easy to clean and maintain.

For more detials please "Chat with Us"

Note: Specifications are subject to change without prior notice due to continuous product development and images. All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
