WINTERHALTER HOOD TYPE DISHWASHER

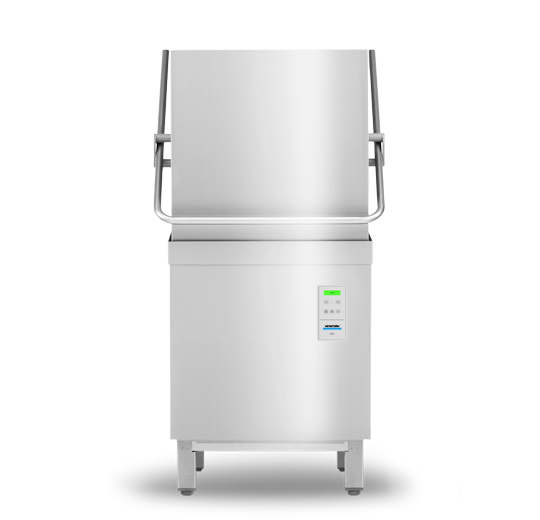

PROFESSIONAL DISHWASHING. RELIABLE AND POWERFUL Winterhalter Hood Type Dishwasher P50 High performance – German technology are the two specifications for the development of the P50. The result is a rack passthrough dishwasher specially designed for the requirements of our customers in Asia: good wash results, extremely powerful, easy to use, very reliable, low operating costs. And all at an attractive price.Keeping your dishes and glasses clean is essential to the life of your business, and thanks to this durable unit, you can successfully clean up to 55 racks per hour using a mere. 72 gallons of water per rack. Not only will this increase productivity in your dishroom, but you'll also conserve water, which lowers utility costs and saves money in the long run.
Key Feature :
| Model |
P50 Dishwasher |
| Brand : |
Winterhalter |
| Dimensions(WxDxH)mm: |
720 x 712 x 1020 mm |
| Depth - Door Open: |
982mm |
| Rack Dimensions: |
500 x 500 mm |
| Clear Entry Height: |
376 mm |
| Water Connection: |
G ¾” |
| Waste Water Connection: |
32 mm |
| Tank Capacity: |
15.3 Litre |
| Rinse Water Consumption : |
2.4 Litre |
| Tank Temperature Standard / High Temp: |
62°C / 66°C |
| Rinse Tank Temperature: |
85°C |
| Max Water Inlet Temperature |
60°C |
| Circulating Pump (P1) |
0.5 kW |
Noise Emission |
59 dB(A) Max |
| Weight (Nett / Gross) |
66 / 76 |
Operating voltage: |
220-240V / 1N~ / 50Hz |
| Total Connected Load:: |
2.85kW |
Weight: |
|
Winterhalter Dishwasher General Feature :
WASHING PROGRAMMES: Winterhalter Hood Type Dishwasher P50 makes washing as easy as possible with only two essential wash programmes. A standard programme for normal soiling and a High Temp programme for heavy soiling that also meets Thermolable specifications.
EXTREMELY EASY TO USE: No worries over inexperienced employee or high staff turnover. The P50 is intuitive to operate. The colour-coded display is self-explanatory with language-neutral pictograms. It displays the machine's current operation status at a glance: heating, ready for operation of washing. Numerous control functions ease the burden of the staff, for example the simple press-one button to cell up the real time tank and boiler temperatures.
WASH FIELD: Winterhalter Hood Type Dishwasher P50: two elliptical wash field at the top and bottom deliver optimal wash results. The special shape of the wash fields and the jet geometry wash power over the entire wash chamber and deliver great rinse result with minimal fresh water volume.
HYGIENE CONCEPT: Winterhalter Hood Type Dishwasher Behind the P50 is a carefully through-out concept for perfect hygiene and convenient cleaning. The interior is smooth and has no joints. The tank has hygienic heating element and, like the rack guide, is deep-drawn. A hygiene rear panel prevents timescale and dirt deposits. In combination with the self-cleaning programme, cleaning work is reduced to a minimum, Furthermore, The P50's standard programme meets hygiene requirements in accordance with DIN 1053
FILTRATION: The cleaner the wash water, the fewer changes of tank water are required, and the better the wash result. The P50 filters the wash water through a strainer with a removable filter cylinder and a pump inlet filter. The ensure food residues and impurities are filtered in an effective way.
SOFT START: When the wash cycle starts, the P50 gradually and continuously build up the washing pressure. The gentle treatment ensure that even delicate dishes are properly protected.
DOUBLE-SKINNED DOOR: Winterhalter Hood Type Dishwasher P50 is built with quality through to the last details. It is fitted with solid double-skinned hygiene doors that reduce machine noise and heat losses to ensure pleasant working conditions.
LOW CAPACITY WASH TANK: : Tank volume of the P50 has been reduced to the bare minimum. With this, operation costs are reduced and the machine is ready for operation.
THERMOSTOP: The rinse cycle has a decisive impact on the quality of the wash result. The correct temperature is important here and the P50 controls this automatically. The Thermostop starts the rinsing cycle only when the temperature in the boiler has reached its set value.
EASY TO SERVICE: The integrated error management system and simple access to the components make the P50 particularly easy to service. For example, If the filter is clogged, the machine will immediately indicate this with a pictogram in the display.
Note: Specifications are subject to change without prior notice due to continuous product development and images. All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
