Equip 5MPH-8WLN-06 low profile commercial pre-rinse spray faucet wall mount kitchen unit
Equip Mini-Pre Rinse Unit: 6" Wall Mount Faucet, 5SV, 6" Swing Nozzle, Lever Handles, Wall Bracket

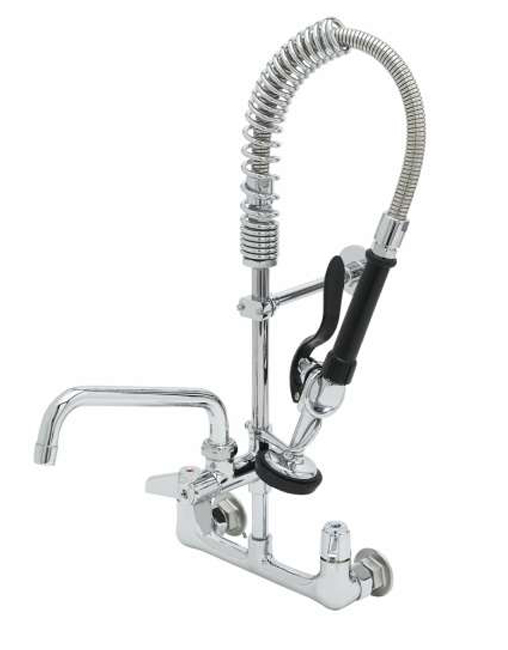

Easily rinse fruits and vegetables or remove sauces from dishes with the Equip by T&S 5MPH-8WLN-08 wall mounted dual-temp pre-rinse faucet. This 24" spring style faucet allows for easy maneuverability and added convenience around the sink area. Get the temperature you need for each job with dual-temp lever handles and durable ceramic cartridges that stand up to repeated use. The heat resistant handle ensures comfort during periods of extended use.
Equip by T&S 5MPH-8WLN-06 Wall Mounted Dual-Temp Pre-Rinse Faucet with 24" Hose, 6 1/8" Add-On Faucet, 6" Wall Bracket, and Lever Handles
8" wall mount mixing faucet with polished chrome plated brass body, add-on faucet with ceramic cartridge and lever handle, 6" swing nozzle with laminar flow device, 8" riser, 24" flexible stainless steel hose with heat resistant handle, 1.15 GPM spray valve, ceramic cartridges, lever handles, in-line check valves, 1/2" NPT female inlets, 6" adjustable wall bracket, spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. 2019 DOE PRSV- Class II compliant.
Technical Data Sheet
| Spec Drawings/Parts Explosion | Submittal Drawing | Eauip Faucet & Pre Rinse Unit Installation |
Key Feature :
| Model: | 5MPH-8WLN-06 |
| Pressure: | 20 - 125 psi (1.38 bar - 8.62 bar) |
| Temperature: | 40 F - 140 F (4.44℃ - 60℃) |
| Body-Mount: | Deck Mount |
| Body: | 8" Centers (203 mm) |
| Cartridge-Spindle: | Ceramic |
| Spray Valve: | EQUIP 5SV (1.15 GPM) (4.35 L/min) |
| Handle: | Lever |
| Maximum Water Temperature | 140 Degrees F |
| Pre Rinse Unit Type | Hose and Spring |
| Inlet: | |
| Nozzle: |
| Spray Valve: | EQUIP 5SV (1.15 GPM) (4.35 L/min) |
| Hose Length: | 24 Inches |
| Add-On Faucet: | 8 Inches Add-on faucet w/ polished chrome plated brass body |
| Feature: | Check Valve 6" Wall Bracket (152 mm) |
| Weight: | 11.60 lbs (5.26 kg) |
| Box Dimensions: | 12x28x4 |
The chrome plated brass body and stainless steel hose provide rust resistance to your investment, and a 6" adjustable wall bracket holds the nozzle out of the way when not in use. This is complemented by the easy swing of the nozzle and stainless steel hose that allow you to quickly rinse and repeat. The add-on faucet's flow is controlled by a 1.15 GPM spray valve and laminar flow device for consistent output. This compact pre-rinse offers great flexibility to meet the demands of your business.
Having the right pre-rinse setup for your business can improve efficiency in your kitchen and dish room, and make life easier for you and your staff! This model is well-suited for most pre-rinse setups in a restaurant dishroom or warewashing area. It mounts easily to the wall and comes with a host of features to make installation and use as easy as possible, whether you need to replace an old faucet or you're using it on a brand new installation.
Features & Benefits
- 8" wall mount mixing faucet w/ polished chrome plated brass body & 2 1/4" Deck Flange
- 6 Inch Add-on faucet w/ polished chrome plated brass body
- 24" flexible stainless steel hose w/ heat resistant black handle and hold down ring
- 18" flexible stainless steel supply hoses w/ 1/2" NPSM / 5/8" compression connections
- 1.15 GPM spray valve (5SV) with ergonomic squeeze handle
- 6 1/8" swing nozzle w/ laminar flow device
- Ceramic cartridges
- 8" rigid riser
- 1/2" BSPP in-line check valves
- 6" adjustable wall bracket
- Lever handles w/ color coded indexes
- Lever handles with color coded screws for durability and easy operation
- Ceramic cartridges provide excellent durability and leak-resistance since there is no seat washer
- Includes wall bracket for added support, and in-line check valves
- Ceramic cartridges provide excellent durability and leak-resistance since there is no seat washer
- Includes wall bracket for added support, and in-line check valves
- Durable chrome plated brass construction
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Note: Specifications are subject to change without prior notice due to continuous product development and images. All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
