5PR-8W12-C

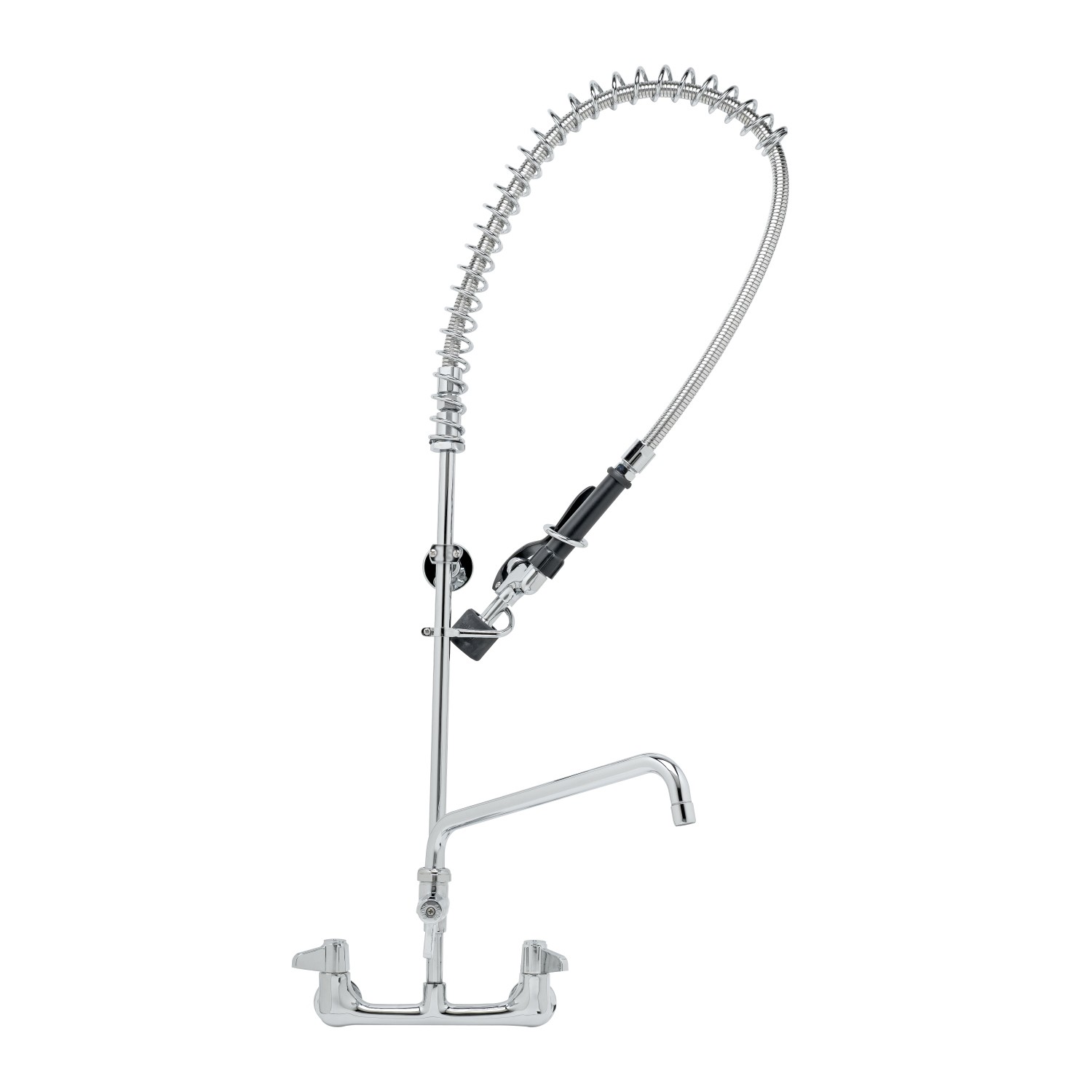

Pre-Rinse Unit: 8" Wall Mount, Low-Flow Spray Valve, Add-On Faucet & 12" Swing Nozzle
The Wall-mounted pre-rinse faucet with sprayer and add on faucet is perfect for rinsing excess food and sauces off of your dishes prior to running them through your commercial dish machine. Intended for janitorial and dishwashing use, this faucet is ideal for dish rooms, schools, grocery stores, kitchens, and more. Installed on 8" adjustable centers, it is completely interchangeable with other brands.
The pre-rinse unit, featuring an 8" wall mount, low-flow spray valve, add-on faucet, and 12" swing nozzle, is a versatile and efficient solution for any commercial kitchen. This unit is designed to enhance kitchen operations by offering a powerful, yet water-efficient, pre-rinse spray valve that reduces water usage while maintaining high pressure for effective cleaning. The 8" wall mount ensures a sturdy and space-saving installation, freeing up valuable counter space. The add-on faucet provides additional functionality, allowing for easy filling of pots and containers, while the 12" swing nozzle offers extended reach and flexibility, making it ideal for various kitchen tasks. Ergonomically designed handles and levers ensure user comfort during prolonged use, and the durable construction guarantees long-lasting performance. This pre-rinse unit is an excellent investment for restaurants, cafeterias, and catering services looking to improve efficiency, reduce costs, and maintain a high standard of cleanliness in their kitchens.
Equip by T&S 5PR-8W12-C Wall Mounted 35 11/16" High Pre-Rinse Faucet with 8" Adjustable Centers, 1.2 GPM Spray Valve, 44" Hose, 12" Add-On Faucet, and 6" Wall Bracket.
8" wall mount mixing faucet with polished chrome plated brass body, add-on faucet with ceramic cartridge and lever handle, 12" swing nozzle with laminar flow device, 18" riser, 44" flexible stainless steel hose with heat resistant handle, 1.20 GPM spray valve, ceramic cartridges, lever handles, in-line check valves, 1/2" NPT female inlets, 6" adjustable wall bracket, spray valve holder and overhead spring. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. 2019 DOE PRSV - Class ll compliant.
Key Feature :
| Model: | 5PR-8W12-C |
| Pressure: | 20 - 125 psi (1.38 bar - 8.62 bar |
| Temperature: | 40 F - 140 F (4.44℃ - 60℃) |
| Body-Mount: | Wall Mount |
| Body: | 8" Centers (203 mm) |
| Inlet: | |
| Cartridge-Spindle： | Ceramic |
| Nozzle: |
|
| Nozzle Outlet Type | Laminar Flow Device |
| Handle: | |
| Maximum Water Temperature |
| Spray Valve: : | EQUIP 5SV (1.15 GPM) (4.35 L/min) | Hose Length: | 44 Inches | tr>Add-On Faucet: | Yes |
| Feature: | Check Valve 6" Wall Bracket (152 mm) |
| Weight: | 12.30 lbs (5.58 kg) |
| Box Dimensions: | 12x28x4 |
| Application : | Commercial Kitchen, Restaurants, Pub & Bar, Canteen, Food Courts, Cafeteria etc.. |
Having the right pre-rinse setup for your business can improve efficiency in your kitchen and dish room, and make life easier for you and your staff! This model is well-suited for most pre-rinse setups in a restaurant dishroom or warewashing area. It mounts easily to the wall and comes with a host of features to make installation and use as easy as possible, whether you need to replace an old faucet or you're using it on a brand new installation.
Equip by T&S 5SV-C Details
The Equip by T&S 5SV-C Equip Low Flow spray valve is a replacement for the Low Flow spray valve that comes with select Equip by T&S pre-rinse units, and and an upgrade over standard spray valves that come with the rest. This spray valve provides an efficient 1.2 GPM spray and has a black rubber bumper around its spray face to prevent damage to dinnerware.
The spray valve on this pre-rinse is capable of a 1.2 GPM flow rate. This helps you to conserve water and save money on your utility bill, and also makes it well-suited for most warewashing setups. An ergonomic and heat-resistant handle makes it easy to use even during a long and busy shift, while the hold-down ring lets you lock it in a continuous spray position for as long as you need
The T&S 5SV-C Equip Low Flow Spray Valve is a top choice for commercial kitchens seeking efficiency and sustainability. Operating at a low flow rate of 1.15 GPM, this spray valve significantly reduces water consumption without sacrificing cleaning power. Its high-pressure output ensures quick and thorough rinsing of dishes, pots, and kitchen utensils. Designed for durability, the T&S 5SV-C is constructed from high-quality materials that resist corrosion and withstand the demands of a busy kitchen. The ergonomic handle and trigger lock provide comfortable and fatigue-free operation, making it ideal for long shifts. Easy to install and compatible with a variety of pre-rinse units, this spray valve is a versatile and eco-friendly solution for restaurants, cafeterias, and catering services aiming to improve efficiency and reduce water usage.
Features & Benefits
- 8" wall mount polished chrome plated brass body.
- 18" rigid riser
- Add-on faucet w/ polished chrome plated brass body
- 12" swing nozzle w/ laminar flow device
- 44" flexible stainless steel hose w/ heat resistant black handle and hold down ring
- 1.20 GPM spray valve
- In-line check valves/li>
- Quarter-turn ceramic cartridges
- Lever handles w/ color coded screws
- 1/2" female inlets with 2" wall flanges
- In-line check valves
- 6" adjustable wall bracket
- Lever handles with color coded screws for durability and easy operation
- Ceramic cartridges provide excellent durability and leak-resistance since there is no seat washer
- Includes wall bracket for added support, and in-line check valves
- Durable chrome plated brass construction
- Time-Saving: The combination of the spray valve and add-on faucet streamlines dishwashing and other kitchen tasks, reducing time spent on each.
- Versatility: The unit can handle various tasks, from pre-rinsing dishes to filling large pots, improving overall kitchen workflow.
- Water Savings: The low-flow spray valve significantly cuts down on water usage, reducing utility costs.
- Durability: High-quality construction ensures long-lasting performance, minimizing the need for frequent replacements or repairs.
- Ease of Use: Ergonomically designed handles and levers make the unit comfortable to use, even during extended periods.
- Adjustable: The swing nozzle and add-on faucet offer flexibility in positioning, catering to various tasks and user preferences.
- Restaurants: Perfect for busy restaurant kitchens where efficiency and versatility are paramount.
- Cafeterias: Suitable for high-volume food service areas where quick and effective dishwashing is needed.
- Catering Services: Ideal for catering businesses that require portable and efficient washing stations.
- Regularly clean the spray valve and faucet to prevent buildup of debris and ensure optimal performance.
- Inspect the unit periodically for any signs of wear or damage, and replace parts as needed to maintain functionality.
Maintenance:
The pre-rinse unit with an 8" wall mount, low-flow spray valve, add-on faucet, and 12" swing nozzle is an excellent addition to any commercial kitchen. It combines efficiency, versatility, and water savings, making it a valuable tool for enhancing kitchen operations. With proper installation and maintenance, this unit will provide reliable performance for years to come. The pre-rinse unit, featuring an 8" wall mount, low-flow spray valve, add-on faucet, and 12" swing nozzle, is a versatile and efficient solution for any commercial kitchen.
DOWNLOAD
| INSTALLATION INSTRUCTIONS GUIDE | SPEC DRAWINGS/PARTS EXPLOSION | SUBMITTAL |
Note: Specifications are subject to change without prior notice due to continuous product development and images. All pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.
